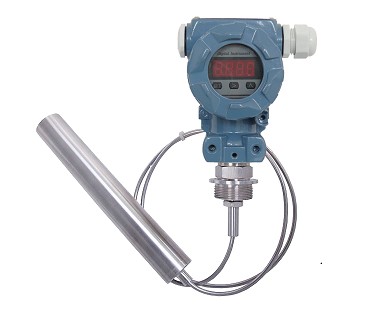

In the HTS-LM8X series high-temperature gas-conductive liquid level transmitter, the sensor and signal processing circuitry are housed within the terminal box; pressure is transmitted to the sensor via a pressure-conducting tube from gas trapped in a submerged gas-collection chamber, thereby preventing direct contact between the sensor and the measured medium. Specifically designed for high-temperature or highly corrosive liquids, this product effectively resolves the challenges associated with measuring liquid levels in such conditions. It is particularly well-suited for level measurement involving small-to-medium ranges and highly corrosive media.
In the HTS-LM8X series high-temperature gas-conductive liquid level transmitter, the sensor and signal processing circuitry are housed within the terminal box; pressure is transmitted to the sensor via a pressure-conducting tube from gas trapped in a submerged gas-collection chamber, thereby preventing direct contact between the sensor and the measured medium. Specifically designed for high-temperature or highly corrosive liquids, this product effectively resolves the challenges associated with measuring liquid levels in such conditions. It is particularly well-suited for level measurement involving small-to-medium ranges and highly corrosive media.
Features
l Wide measurement range: 0–1 m to 20 mH₂O
l Multiple output signal options
l Anti-interference and surge protection
l Suitable for high-temperature and low-range measurements
Application
It is suitable for liquid level detection and system control involving high-temperature or corrosive media applications.
Range | 0…1…20mH2O; | ||
Pressure Form | Gauge pressure (G); Sealed gauge pressure (S); Absolute pressure (A) | ||
Output Signal | 4…20mA; 0.5…4.5VDC; 0…5VDC; 0…10VDC; IIC; RS485 | ||
Input voltage | 8…30V DC; 5…8VDC; 3.3VDC | ||
Accuracy level | 0.1%FS | 0.2%FS | 0.5%FS |
Zero Drift | 0.01%FS/℃ | 0.02%FS/℃ | 0.05%FS/℃ |
Sensitivity Drift | 0.01%FS/℃ | 0.02%FS/℃ | 0.05%FS/℃ |
Compensation Temperature | 0…50℃; -10…70℃ | ||
Working Temperature | -20～+85℃; -40～+125℃ | ||
Storage Temperature | -40～+125℃ | ||
Long-term Stability | ≤0.2±%FS/year; ≤0.5±%FS/year | ||
Response Time | ＜1ms | ||
Overload Capacity | 200% | ||
Load Resistor | R=(U-12.5)/0.02-RD Note: U is the power supply voltage, and RD is the internal resistance of the power supply. | ||
Measuring Medium | Corrosive media compatible with 316L | ||
Diaphragm Material | 316L; A1203 | ||
Shell Material | 304SS; 316L; TC4 | ||
Electrical Interface | Direct outgoing line | ||
Process Interface | // | ||
Protection level | IP68 | ||
Explosion-proof rating | Ex ia Ⅱ CT6 optional | ||
