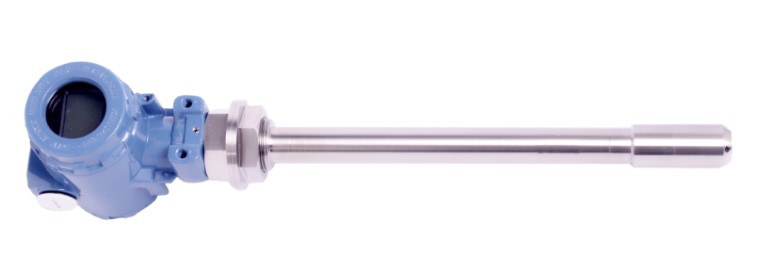

The HTS-LM07X series armored level transmitter is a fully welded and sealed product designed for small molecule liquid level measurement. The product uses a high-accuracy and high-stability pressure-sensitive element with a stainless steel isolation diaphragm. Through reasonable structural design and advanced microprocessor technology, it achieves comprehensive linear error and temperature drift compensation. The entire liquid-immersed part is protected by stainless steel tubes. It is manufactured into an integrated product with an industrial standard 4-20mA or 0.5-4.5V signal through a full welding process.
The HTS-LM07X series armored level transmitter is a fully welded and sealed product designed for small molecule liquid level measurement. The product uses a high-accuracy and high-stability pressure-sensitive element with a stainless steel isolation diaphragm. Through reasonable structural design and advanced microprocessor technology, it achieves comprehensive linear error and temperature drift compensation. The entire liquid-immersed part is protected by stainless steel tubes. It is manufactured into an integrated product with an industrial standard 4-20mA or 0.5-4.5V signal through a full welding process.
Features
l Multiple output signals available
l All-welded construction, durable
l Anti-interference and surge protection
l All stainless steel protective components were installed
Application
It is suitable for static water levels, liquid irrigation, sewage, industrial water, swimming pools, wells, rivers, seawater, lakes, etc.
Range | 0…1…20mH2O; | ||
Pressure Form | Gauge pressure (G); Sealed gauge pressure (S); Absolute pressure (A) | ||
Output Signal | 4…20mA; 0.5…4.5VDC; 0…5VDC; 0…10VDC; IIC; RS485 | ||
Input voltage | 8…30VDC; 5…8VDC; 3.3VDC | ||
Accuracy level | 0.1%FS | 0.2%FS | 0.5%FS |
Zero Drift | 0.01%FS/℃ | 0.02%FS/℃ | 0.05%FS/℃ |
Sensitivity Drift | 0.01%FS/℃ | 0.02%FS/℃ | 0.05%FS/℃ |
Compensation Temperature | 0…50℃; -10…70℃ | ||
Working Temperature | -20～+85℃; -40～+125℃ | ||
Storage Temperature | -40～+125℃ | ||
Long-term Stability | ≤0.2±%FS/year; ≤0.5±%FS/year | ||
Response Time | ＜1ms | ||
Overload Capacity | 200% | ||
Load Resistor | R=(U-12.5)/0.02-RD Note: U is the power supply voltage, and RD is the internal resistance of the power supply. | ||
Measuring Medium | Corrosive media compatible with 316L | ||
Diaphragm Material | 316L; A1203 | ||
Shell Material | 304SS; 316L; TC4 | ||
Electrical Interface | Direct outgoing line | ||
Process Interface | // | ||
Protection level | IP68 | ||
Explosion-proof rating | Ex ia Ⅱ CT6 optional | ||
