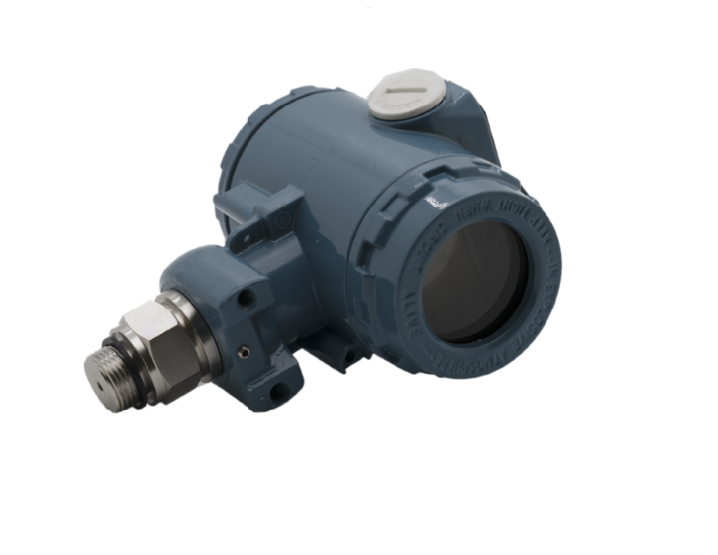

HTS-PM08X Series Industrial Pressure Transmitter
    Publish time 2026-06-25 16:58

The HTS-PM08X series industrial pressure transmitter is a high-precision, high-stability pressure measurement product independently designed and manufactured by our company. It features a silicon piezoresistive sensor with a stainless steel isolation diaphragm and utilizes dedicated digital circuitry. Through signal processing—including amplification, linearity compensation, and protection against interference and surges—the unit outputs an industry-standard signal.


HTS-PM08X Series Industrial Pressure Transmitter
The HTS-PM08X series industrial pressure transmitter is a high-precision, high-stability pressure measurement product independently designed and manufactured by our company. It features a silicon piezoresistive sensor with a stainless steel isolation diaphragm and utilizes dedicated digital circuitry. Through signal processing—including amplification, linearity compensation, and protection against interference and surges—the unit outputs an industry-standard signal.



Features

l  Multiple output signal options available

l  High precision and reliability, build-in German-made chip

l  Interference resistance and surge protection

l  316L stainless steel isolation diaphragm, integrated design

l  Intrinsically safe; complies with Exia II C T6 requirements under the GB3836.4 standard



Application

It is widely used in the food, beverage, and brewing industries, as well as in sanitary sectors like pharmaceuticals, for measuring viscous media and for applications where pressure inlets are prone to clogging.


Range

-100…10KPa…100KPa

0…1…100MPa

Pressure   Form

Gauge   pressure (G); Sealed gauge pressure (S); Absolute pressure (A)

Output   Signal

4…20mA; 0…10VDC; IIC; RS485

Input   voltage

8…30VDC; 5…8VDC; 3.3VDC

Accuracy level

0.1%FS

0.2%FS

0.5%FS

Zero Drift

0.01%FS/℃

0.02%FS/℃

0.05%FS/℃

Sensitivity Drift

0.01%FS/℃

0.02%FS/℃

0.05%FS/℃

Compensation   Temperature

0~50℃; -10~70℃

Working   Temperature

-20~+85°C

Storage   Temperature

-40～+125℃

Long-term   Stability

≤0.2±%FS/year; ≤0.5±%FS/year

Response   Time

＜1ms

Overload   Capacity

200%

Load   Resistor

R=(U-12.5)/0.02-RD

Note:   U is the power supply voltage, and RD is the internal resistance of the power   supply.

Measuring   Medium

Corrosive   media compatible with 316L

Diaphragm   Material

316L;   Tantalum; C-276

Shell   Material

304SS;   316L; PTFE; PVDF; TC4

Electrical   Interface

DIN   43650A or Customized

Process   Interface

M20×1.5   or customized

Protection   level

IP65;   IP66; IP67; IP68

Explosion-proof   rating

Ex   db ⅡC   T6 GB optional
