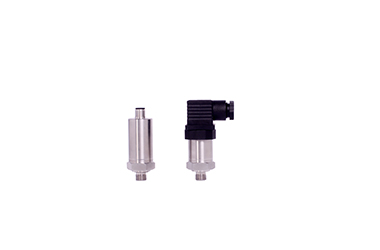

The HTS-PM02X series fully-welded pressure transmitter is a high-precision, high-stability pressure measurement product independently designed and manufactured by our company. It features an all-welded sealed structure with no internal O-rings and incorporates specialized digital circuitry; through signal processing—including amplification, linearity compensation, and protection against interference and surges—it outputs an industry-standard signal.
The HTS-PM02X series fully-welded pressure transmitter is a high-precision, high-stability pressure measurement product independently designed and manufactured by our company. It features an all-welded sealed structure with no internal O-rings and incorporates specialized digital circuitry; through signal processing—including amplification, linearity compensation, and protection against interference and surges—it outputs an industry-standard signal.
Features
l Multiple output signal options available
l Anti-interference and surge protection
l High precision, high reliability, build-in German-made chip
l Fully welded, sealed construction; no internal O-rings
Application
It is mainly used in the fields of petrochemicals, constant-pressure water supply, measurement and control technology, and hydraulics and pneumatics.
Range | -100…10…1000KPa | ||
0…1…100MPa | |||
Pressure Form | Gauge pressure (G); Sealed gauge pressure (S); Absolute pressure (A) | ||
Output Signal | 4…20mA; 0.5…4.5VDC; 0…10VDC; IIC; RS485 | ||
Input voltage | 8…30VDC; 5…8VDC; 3.3VDC | ||
Accuracy level | 0.1%FS | 0.2%FS | 0.5%FS |
Zero Drift | 0.01%FS/℃ | 0.02%FS/℃ | 0.05%FS/℃ |
Sensitivity Drift | 0.01%FS/℃ | 0.02%FS/℃ | 0.05%FS/℃ |
Compensation Temperature | 0…50℃; -10…70℃ | ||
Working Temperature | -20～+85℃ | ||
Storage Temperature | -40～+125℃ | ||
Long-term Stability | ≤0.2±%FS/year; ≤0.5±%FS/year | ||
Response Time | ＜1ms | ||
Overload Capacity | 150% | ||
Measuring Medium | Corrosive media compatible with 316L | ||
Diaphragm Material | 316L; C-276; TC4 | ||
Shell Material | 304SS; 316L; C-276; TC4 | ||
Electrical Interface | DIN 43650A or Customized | ||
Process Interface | M20×1.5 or customized | ||
Protection level | IP65; IP66; IP67; IP68 | ||
Explosion-proof rating | Ex ia Ⅱ CT6 optional | ||
