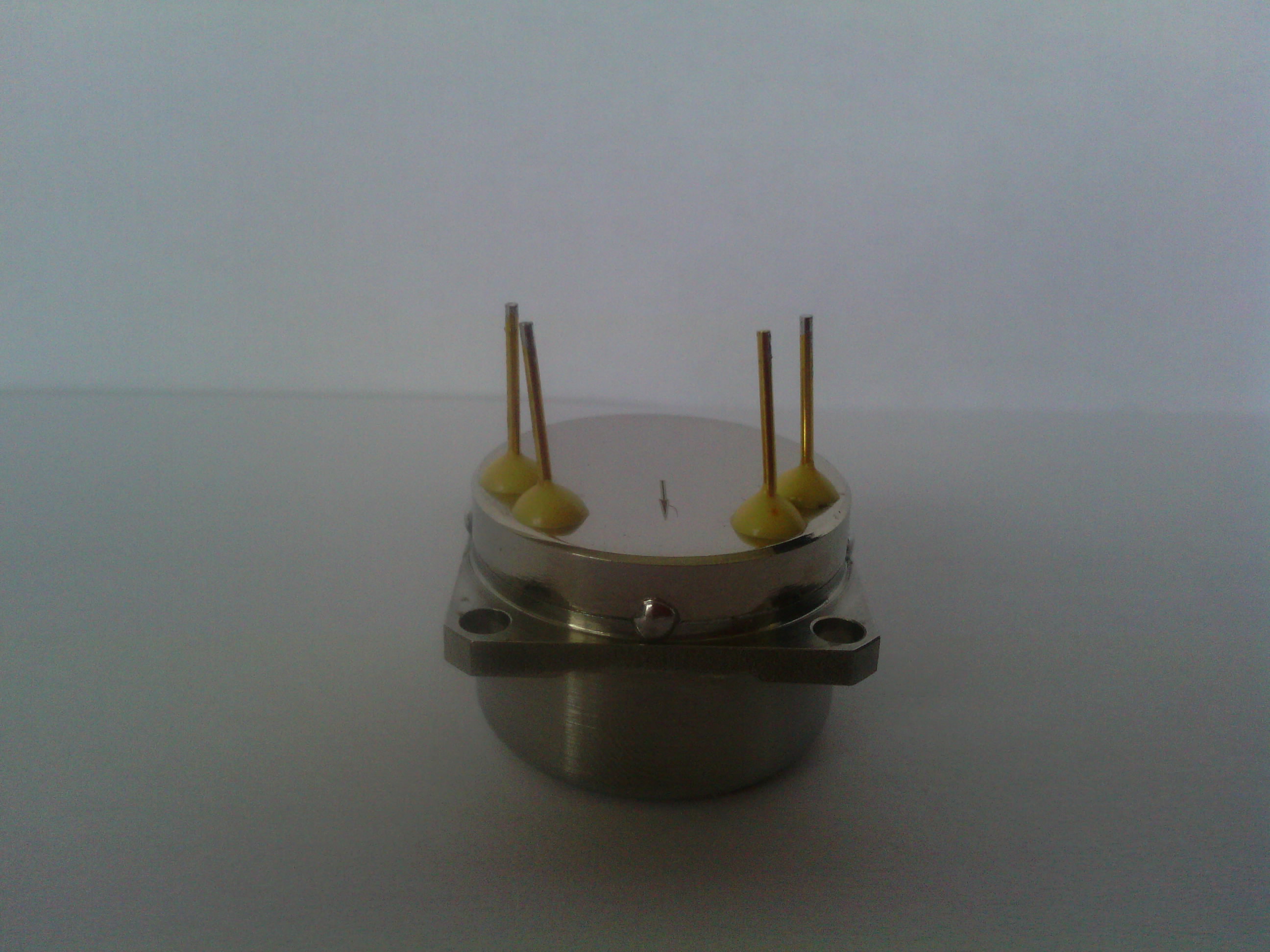

HTS-C series tactical grade quartz accelerometer with high range and high accuracy, excellent reliability and long-term repeatability.

Applications:

l  Attitude and Heading reference systems (AHRS)

l  Inertial measurement units (IMU)

l  Inertial navigation systems (INS)

l  Unmanned vehicle system (UVS)

l  Orientation drilling system for gas and oil industry

l  Railway track system

Product  Specification		Model: HTS-CI
		02	01
Measurement  Range		≥±10g	≥±10g
Bias		≤±10mg	≤±15mg
Bias Temp  Coefficient		≤±60 µg/°C	≤±100 µg/°C
Bias  Repeatability		≤100 µg ( 1 day )	≤100 µg ( 1 day )
Scale Factor		2.5~3.5 mA/g	2.5~3.5 mA/g
Scale Factor  Temp Coefficient	Room Temp~120°C	≤±120 ppm/°C	≤±150 ppm/°C
	120°C ~150°C	≤±200 ppm/°C	≤±500 ppm/°C
Scale Factor  Repeatability		≤100  ppm ( 1 day )	≤100 ppm ( 1 day )
Shock		1000g,0.5ms,1/2sin	1000g,0.5ms,1/2sin
Vibration		20g(20~2000Hz)	20g(20~2000Hz)
Operating Voltage		±7~±12 V	±7~±12 V
Operation  Temperature		-45~+150 °C	-45~+150 °C
Operation  Temperature		-40~+150 °C	-40~+150 °C
Dimension		Ф21.1*15 mm	Ф21.1*15 mm
Weight		≤30g	≤30g
