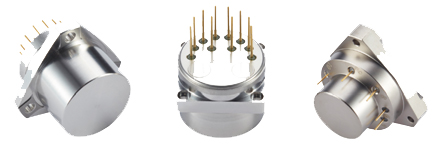

Product Specification	Model: HTS-JA3
	01	02	03
Measurement  Range	≥±60g	≥±60g	≥±60g
Bias	≤±5mg	≤±5mg	≤±5mg
Bias  Temp Coefficient	≤±15 µg/°C	≤±50 µg/°C	≤±50 µg/°C
Bias  Repeatability	≤±15 µg (1 month)	≤±50 µg (1 month)	≤±50 µg (1 month)
Scale  Factor	0.8~1.2 mA/g	0.8~1.2 mA/g	0.8~1.2 mA/g
Scale  Factor Temp Coefficient	≤±15 ppm/°C	≤±80 ppm/°C	≤±50 ppm/°C
Scale  Factor Repeatability	≤±15 ppm (1 month)	≤±50 ppm (1 month)	≤±50 ppm (1 month)
Second-order Nonlinearity	≤±20 µg/g²	≤±30 µg/g²	≤±20 µg/g²
Second-order Nonlinearity Repeatability	≤±20 µg/g² (1 month)	≤±30 µg/g² (1 month)	≤±30 µg/g² (1 month)
Threshold	≤5×10-6 g	≤5×10-6 g	≤5×10-6 g
Nature  Frequency	400~800 Hz	400~800 Hz	400~800 Hz
Band  width	800~2500 Hz	800~2500 Hz	800~2500 Hz
Operating Voltage	±12~±15 V	±12~±15 V	±12~±15 V
Operation  Temperature	-55~+85 ℃	-55~+85 ℃	-55~+85 ℃
Storage  temperature	-60~+120 ℃	-60~+120 ℃	-60~+120 ℃
Shock	150g, 5ms,1/2sin	150g, 5ms,1/2sin	150g, 5ms,1/2sin
Random  vibration	10g(20~2000Hz)	10g(20~2000Hz)	10g(20~2000Hz)
Temperature  sensor	Can be customized	Can be customized	Can be customized
Dimension	Ф18.2*23 mm	Ф18.2*23 mm	Ф18.2*23 mm
Weight	≤30g	≤30g	≤30g
